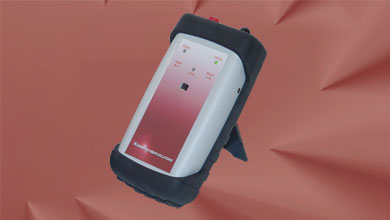

OS530FTTHSC
Laser Sender
SC |
| |
 |
| |
|
The sender is for outside plant and single-mode fiber. The
connector output can be adapted to any cable plant with hybrid
adapters or hybrid cables. This unit is easy to operate with a
wavelength/power switch, which selects optical wavelengths or
disables the unit. There is also a switch which select between
either the CW or 2 kHz output for the transmitting
wavelength. The CW or 2Khz tone is for sending a tone down the
fiber it is useful if the end user has a tone identifier that ca
be clipped onto to the fiber to identify and individual fiber. The light source is designed for performing insertion
loss measurements on fiber optic links when used with an optical
power meter. Whether testing outside plant or premise an optical
source is the perfect tool when combined with an optical power
meter. The output is stabilized to ensure accurate test results
per current TIA/EIA requirements. The wavelengths are
individually adjustable with a mechanical screw to have a
variable attenuator or to reduce the output power. This make it
able to save battery power when high optical output power is not
necessary, or to turn up the power to test long runs. The sender
is delivered in a protective rubber boot. |
| |
|
Features |
| |
|
OS530FTTHSC Features: |
|
l |
Single mode FTTH
and PON applications |
|
l |
Outside plant and single-mode fiber |
|
l |
CW or 2 kHz output for
transmitting wavelength |
|
l |
Adjustable power output with
mechanical screw |
|
l |
Certify links per TIA/EIA
standards |
|
l |
Low battery indicator |
|
l |
Rugged |
|
l |
Handheld |
|
l |
Lightweight |
|
l |
Easy to use |
|
|
|
OS530FTTHSC
Package Contents: |
|
1 |
OS530FTTHSC
Laser Sender
SC |
|
1 |
Product Spec
Sheet |
|
1 |
CALS Calibration
Sender |
|
1 |
Carrying Pouch |
|
1 |
Trim Tool |
| |
|
OS530FTTHSC
Options: |
| |
- See
options list |
|
| |
|
Specifications |
| |
|
OS530FTTHSC (POF APPLICATIONS) |
SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
|
Applications |
FTTH PONS & Singlemode |
|
Wavelength (λ) |
1310nm 1490nm & 1550nm |
|
Output type |
Laser |
|
Modulated
Frequencies |
270hz, 1Khz, 2Khz |
|
Stability, 1 hour
(after 5 min warm up) |
Less than 0.1dB (Typical) |
|
Power Output |
-5 dBm (typical) into 9/125 fiber |
|
Connector |
SC |
|
Controls |
Front panel slide switches |
|
Power |
2 x AA Batteries
or AC Power Converter |
|
Low battery indicator |
Yes |
|
Protective rubber boot |
Yes |
|
Enclosure Size |
L: 125 mm, W: 70 mm, H:30 mm |
|
Weight |
180
gram |
|
Operation Temperature |
-10°C to +50°C (45% Hum, non condensing) |
|
Storage Temperature |
-20°C to +60°C (75% Hum, non condensing) |
|
Qualified |
CE, RoHS and WEEE |
|
|
|
