The OTDR measures and certifies optical fibers and makes a
certification report. The OTDR measures the attenuation, the
loss and breaks by fiber, connectors and splices. At this way
splices and dirty, bad or wrong mounted connectors will be
found. A complete overview of the link will be showed as well as
the distance to any event (such as a connector or a splice) and
the total length. The OTDR is the perfect tool for the
construction, maintenance and restoration of cable plants and
also as an educational tool. The OTDR is very accurate and
therefore perfectly useful in a laboratory. Also the OTDR is
portable and rugged enough for field applications. The OTDR has
a low power consumption. The OTDR is used in conjunction with a
PC or Laptop with a USB interface, eliminating the need for
batteries completely.The
enclosed software runs off of Vista, Windows 7/9x/NT/2000, and
XP versions. With this software the OTDR will be
controlled completely by a PC or Laptop. All measurements can be
displayed, stored, read, printed and analysed, even when the
OTDR is disconnected. It is possible to compare different traces
with each other. The OTDR will be delivered completely.
Features
UOR201 Features:
l
Clear certification report
l
High accuracy
l
Compact model
l
Rugged case
l
Lightweight
l
Automatic test function
l
Filtering function
l
Two test functions:
- Real time measurement
- Measurement with averages
l
Events table, like splices, connectors, break and
attenuation
l
Traces stored directly to laptop or PC hard drive
l
USB powered, no external power required
l
Included Windows application software (Bellcore*.sor format)

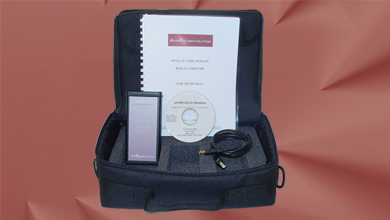

UOR201 Package Contents:
1
UOR201 OTDR
PC USB 32/31dB ST/SC/FC
1
uOTDR Software for Win V3.0
1
USB cable (CBL300)
1
CALO Calibration OTDR
1
Small rugged case
1
Product manual
Specifications
Applications
Singlemode
Connector
ST/SC/FC
Wavelength (±30nm)
1310/1550 nm
Dynamic range
1310nm =
32dB
1550nm =
31dB
Attenuation Dead Zone
6
meter
Event Dead Zone
1,5
meter
Pulsewidth
10
to 20.000 ns
Distance Range
2,
5, 10, 20, 40, 80, 120, 160, 240 km
Loss Resolution
0,001 dB
Distance accuracy
±(0.5+5´10-5´L+(dn/n)´L)
Refractive Index Range Setting
1,0000 to 2,0000
Unit measurement
Meter, feet, km en kf
Input
USB
Power
From USB port from laptop of PC
Supply Current From USB port
<200 mA
Software
Windows (Bellcore *.sor formaat)
Requirements laptop or PC
Vista,
Windows 7/9x/NT/2000 and XP versions
Language
English, Spanish and Korean
Return
Loss
Yes
Resolution (dB)
0,1 dB
Sampling resolution (m)
0,5 to
18 m
LSA
measurement
Yes
Digital distance fault indication
Yes
Attenuation coeficient
Yes
Distance resolutions
0,32 m
Number of Sampling Points
16.000
Automatic measurement with threshold level
Yes
Housing
Metal
Size
L:
158,8 mm; W: 76,2 mm; H: 31,8 mm
Weight
323
gram (unit only)
1,9 kg (unit with accessories)
