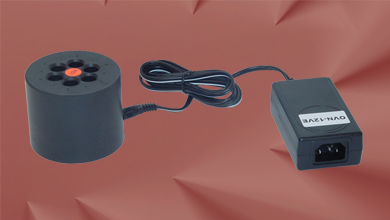

OVN100 Curing Oven 110V



The OVN100 is a portable curing oven that terminates 6 low cost epoxy/polish connectors at the same time in a matter of minutes. The OVN100 is the ideal tool for a fast, reliable and cost-effective assembly of connectors, with a 90% plus yield. The average time is 5 to 10 minutes and the temperature is 90°C. The oven is for the standard ST, FC and SC connectors which are mounted by hand. The portable curing oven is rugged and molded into a rubber to allow field jobs. The power is a 12 Volt DC to 120 Volt AC adapter.


Features

OVN100 Features:
l Terminates 6 connectors at the same time
l

For ST, FC and SC connectors

l

Average time 5 to 10 minutes

l

Temperature 90°C

l

Compact

l

Molded rubber layer


Specifications


Connector type

ST, FC and SC

Number of Ports

6
Temperature Range 90°C
Time to reach 90°C 15 Minutes
Temperature Stability +/- 5°C
Accuracy +/- 8°C
Average curing time 5 to 10 Minutes
Housing Molded rubber layer
Power 12 Volt DC to 120 Volt AC adapter 1,5 A
Qualified CE, RoHS and WEEE
