AHH0 Fusion splicer |
| |
 |
| |
|
The AHH0 is an Optical Fiber Fusion Splicer with a big
screen LCD display employs a high-speed image
processing technology and special precision
positioning technology, which makes the whole
splicing process operated automatically within
10
seconds. It can be used widely in different work
related to optical fiber cable engineering or
for teaching and scientific research in
institutes and colleges. Its small size and
light weight especially make it suitable for
field work. |
| |
|
Features |
| |
|
AHH0 Features: |
|
l |
Fiber core can be display clearly. |
|
l |
Applicable Fiber: SM, MM, NZ-DS, EDF, Pigtail,
Rubber-insulated wire series. |
|
l |
Fiber Holder: only one fiber holder and no need
to change(Patented Feature) |
|
l |
USB port, store 6000 results, 10s splicing, 30s
heating. |
|
l |
Auto check quality of cleaved end face. |
|
l |
Auto select best splicing program |
|
l |
Single X or Y view and X & Y view
simultaneously. |
|
l |
Built-in light for placing fiber. |
|
l |
9 seconds splice time and 30 seconds heat time. |
|
l |
Small bulk and light weigh |
|
l |
5.7 inch color LCD monitor with clear digital
image display. |
|
l |
Simple Operation
menu. |
|
l |
Real-time battery
power monitoring. |
|
l |
Long continuously
using time. |
|
|
|

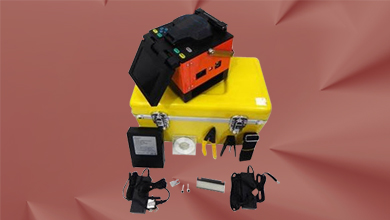

AHH0
Package Contents: |
|
1 |
AHH0
Fusion splicer |
|
1 |
Cleaver |
|
1 |
Display Cover |
|
1 |
Power Adapter |
|
1 |
AC
Power Cable |
|
1 |
Cooling Pallet |
|
1 |
Cleaning Brush |
|
1 |
Plastic Tweezers |
|
1 |
Carrying Case |
|
|
|
AHH0 Options: |
|
l |
AHH3 Spare
Electrode AAH0(1 pair) |
|
l |
AHH2
Certification calibration AAH0 |
|
| |
|
Specifications |
| |
|
Application |
SM, MM, NZ-DS, EDF, Pigtail, Rubber-insulated wire
series |
|
Optical fiber outer diameter |
125 um (standard) |
|
|
coating layer outer diameter: 0.2- 1.5 mm. |
|
Alignment |
Core Align or Envelope
Align |
|
Image Processing |
Digital-Image Processing |
|
Typical Splice Loss |
0.02 dB (SM Fiber)
|
|
|
0.01 dB (MM Fiber) |
|
Typical Splice Time |
10 seconds |
|
Typical Heat Time |
30 seconds (It can be
adjusted) |
|
Splice Mode |
53 factory modes |
|
|
40 user modes |
|
Heat Mode |
9 factory Models 24 user
Mode (Built-in heater) |
|
Fiber Magnification |
300 times (X Axis or Y
Axis); 150 times (X Axis and Y Axis) |
|
Battery Standby Time |
Splicing 150 times after
a full charge |
|
Proof Test |
2 N |
|
Continuous Loss Storage |
6000 groups of the
latest results, each 20 kinds of parameters |
|
Display |
5.7-inch LCD |
|
USB Interface |
connected to computers
for data transmission, storage or print |
|
VGA Interface |
used to connect to
computers or LCD TV |
|
LAN Port |
updated-version software
for remote control |
|
Working Temperature |
-10°C
to 50°C |
|
Storage Temperature |
-40°C
to 60°C |
|
Working Humidity |
< 95% RH (no
condensation) |
|
Storing Humidity |
0-95% |
|
Working Altitude |
0-5000 meters |
|
Highest Wind Speed |
15 m/s |
|
Power Supply |
AC 100-240 V (Power
Adapter); built-in Lithium Battery |
|
Power Consumption |
25W |
|
Size |
150mm(L) x 150mm(W) x
150mm (H) |
|
Weight |
3.2 Kg |
|
Qualified |
CE, RoHS and WEEE |
|
|
|
