OLK61AXPP POF Cert. Set
OM210A/OS417MD/MSP200XP |
|
|
|

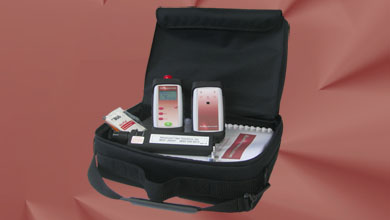

The OLK61AXPP test set is the complete solution necessary for the installer to test,
terminate, trouble shoot and document POF
systems. The OLK61AXPP is designed to allow testing
of all parameters of POF networks, including
output power levels from the fiber, coupled
source power and attenuation loss in a cable.
The testset includes:
OM210A
The meter is designed for POF (plastic optical fiber) and
short wavelength applications (visible and near infrared).
The meter optimizes a Silicon detector suitable for large
core fibers. It is the ideal tool for working with shorter
wavelengths whether the system is glass, plastic or
multimode fibers. The meter has an user selectable choice of
0,1 or 0,01 dB resolution, on board memory for 500 readings
with date and time stamp, a serial port and an USB port for
communication with a PC.
In the internal memory of the meter 500 readings and results can
be stored. The included PC software easily download and document
the measurement results stored in the memory. The results can be
printed directly in detail or as list from the software or can
be saved in a spreadsheet file.
The
meter measures optical power, loss (attenuation) and optical
return loss. The meter is calibrated at industry standard
wavelengths (NIST traceable). The zero reference function is
ideal for testing fiber optic cables in dB, the reference
value is saved in the power meter. A universal 2,5 mm
universal adapter with a threaded housing is included, other
adapters are also available as an accessory. Due to the
backlight the data is always visible. The meter is delivered
in a protective rubber boot.
OS417MD
The sender is optimized for POF (Plastic Optical Fiber) and
larger core multimode applications. The sender has a 650 nm
universal connector and a 850 nm ST, SC, FC connector. The light
source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether
testing outside plant or premise an optical source is the
perfect tool when combined with an optical power meter. The
output is stabilized to ensure accurate test results per current
TIA/EIA requirements. The wavelengths are individually
adjustable with a mechanical screw to have a variable attenuator
or to reduce the output power. This make it able to save battery
power when high optical output power is not necessary, or to
turn up the power to test long runs. This unit is easy to
operate with only a wavelength/power switch, which selects
optical wavelengths or disables the unit. The sender is
delivered in a protective rubber boot. |
MSP200XP
The
MSP200XP is
a high-resolution glass optics scope with 200x magnification for
both multimode and single-mode fibers. The MSP200XP is portable
and is an ideal field tool for inspecting fiber terminations.
The Fiber Microscope utilizes a white LED for coaxial
illumination. Light is focused into the optical path (axis) so
that it comes out the tip of the ferrule and strikes the sample
perpendicular to the fiber end-face. It produces excellent
detail of scratches and contamination. The MSP200XP is equipped
with an attenuating, laser safety filter to reduce the risk of
eye damage when the user accidentally views a fiber with active
emissions. The MSP200XP is equipped with a standard 2,5 mm
adapter, optional is an 1,25 mm adapter. |
|
Features |
|
OLK61AXPP Test Kit Package Contents: |
1 |
OM210A |
1 |
OS417MD |
1 |
MSP200XP |
2 |
AD100 (Universal
2.5mm) |
1 |
SmartWare V3.00 |
1 |
CBL100 (OM-2xx to Serial Cable) |
1 |
CBL200 (Serial
to USB Cable) |
2 |
Product Manual |
1 |
CALM Calibration Meter |
1 |
CALS Calibration
Sender |
1 |
Trim Tool |
4 |
Alco Wipe |
|
OLK61AXPP Options: |
|
- See
options list |
|
|
Specifications |
|
OM210A (POF APPLICATIONS) |
SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
Applications |
Multimode, Premise, Short
Wavelengths, Plastic |
Calibrated (λ)Wavelength |
665nm, 790nm & 850nm |
Dynamic Range |
+3,0 dBm to -55,0 dBm |
Detector Type |
3mm Silicon |
Connectors |
ST, SC, FC |
Adaptor Options |
See
options list |
Accuracy (@25°C, -20.0 dBm) |
±0.25 dB |
Measurement Units |
dBm (absolute), - dB (relative)
and Watts |
Resolution |
0.01dB |
Storage |
500 Readings with Time and
Date Stamp |
Serial Interface |
Yes |
USB Interface |
Yes |
PC Software |
Documentation Software |
Controls |
7 Soft Buttons |
Buttons |
On/Off, Backlight, λ/↑, dB-dBm/↓,
Zero Reference/Select, Save/Delete, Test/Results |
Power |
2 AA Batteries or AC Power Converter |
Low Battery Indicator |
Yes |
Display |
Graphical LCD with Backlight
|
Auto-Shutdown |
Yes |
Protective rubber boot |
Yes |
Testing reference guide |
Yes |
Enclosure Size |
L: 125 mm W: 70 mm H: 30mm |
Weight |
230 gram |
Operation Temperature |
-10°C to +50°C (45% Hum, non
condensing) |
Storage Temperature |
-20°C to +60°C (75% Hum, non
condensing) |
|
OS417MD (POF APPLICATIONS) |
SPECIFICATIONS. KEY FEATURES ANS APPLICATIONS |
Applications |
Plastic, large core and multimode |
Wavelength (λ) |
650nm and 850nm |
Output type |
LED |
Modulated Frequencies |
CW (Continuous Wave) |
Stability, 1 hour |
Less than 0.5 dB |
Power Output |
>-17dBm at 850nm, individually adjustable with mechanical screw |
Connectors |
Universal for 665 nm and
ST for 850 nm |
Controls |
Front panel slide switches |
Power |
2 AA Batteries or AC Power Converter |
Low battery indicator |
Yes |
Protective rubber boot |
Yes |
Enclosure Size |
L: 125 mm, W: 70 mm, H: 30 mm |
Weight |
180 gram |
Operation Temperature |
-10°C to +50°C (45% Hum, non condensing) |
Storage Temperature |
-20°C to +60°C (75% Hum, non condensing) |
|
|
MSP200XP |
SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
Applications |
Multimode and Single mode |
Optical Magnification |
200x |
LED |
Rated life 100,000 Hrs |
Controls |
Momentary On/Off switch, Fine-Focus control |
Safety Filter |
Built in IR filter |
Adapter
Interface |
2,5 mm universal standard – optional
1,25 mm available |
Power Requirements |
3 pieces 1,5 Volt AAA alkaline Batteries |
Size |
L: 225 mm, Diameter 32 mm |
Weight |
0.6Kg |
|
OM200A Reporter software specifications |
SPECIFICATIONS, KEY FEATURES AND APPLICATIONS |
Number of
measurements |
500 measurements |
User information |
Company name |
|
Phone number |
|
Name |
|
Job
ID |
Fiber parameters |
User fiber ID |
|
Fiber type |
|
Fiber details |
|
Connector type |
Meter readings |
Model meter |
|
Calibration date |
|
Reading ID |
|
Result |
|
NanoWatt |
|
dB/dBm |
|
Wavelength |
|
Time and date |
Meter fiber
parameters |
Fiber length (km) |
|
Number of
connectors |
|
Number of splices |
Fiber analyse
results |
Wavelength |
|
Actual reading |
|
Allowable loss |
|
Overhead margin |
|
Pass/fail |
Qualified |
CE, RoHS and WEEE |
|
|
