| AFS-Europe has lowered the prices for all existing
OTDR's. And we also extended our product range with 6 new OTDR's. Read
all about these products in this newsletter! |
| |
| |
|
New:
6 Compact OTDR's and Lower and Affordable price for
all our existing OTDR's! |
| |
| |
|
With the OTDR products, glass fiber connections are
measured, certified and also certificated with a certification report.
The OTDR's measures attenuation, loss from the event and break in fiber
and splices. Through this dirt, bad or assembled connections failures
will be found. A complete over view from the path being visualized
wherein the distances of every event and the total distance are visible.
The OTDR's are perfect tool for the construction, maintenance and
restoration of cable plants and are also extremely suitable for
educational means.
The properties of our
OTDR’s are: |
 |
|
| - |
Extremely accurate and therefore it's
also perfect to use in the laboratory. |
| - |
Very compact and rigid to use in the
field. |
| - |
Automatic test function. |
| - |
Available for Multimode and Single mode or
both |
| - |

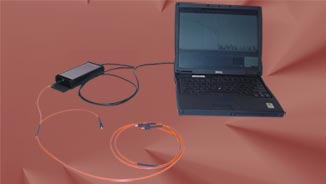

Low energy consumption. The OTDR will be
used together with a laptop or a computer and connected
on the USB connection. These OTDR's don't need an own
power supply since these will be powered by connecting
the unit to the PC or laptop. |
|
|
|
Click on picture for additional information
|
|
|
Advanced features |
| |
|

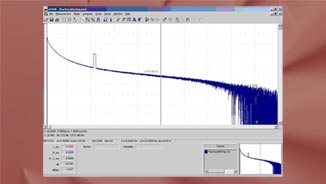

With
the use of the software on the laptop or PC. The OTDR
becomes complete. Here below and at the right side it
shows information regarding its' software and the
certification report. |
| |
|
| - |
Clear certification report. |
| - |
All
measurements can be displayed, stored, read, printed and
analyzed. |
| - |
The
measurements can be viewed all the time on the laptop or
PC, even if the OTDR is not connected. |
| - |
Table for events such as break and failure. |
| - |
Filtering function. |
|
|
 |
|
| |
| |
 |
|
|
Below are
the specifications for the laptop or PC to run the software: |
| |
|
| - |
The
software is available for Windows 9x/NT/2000 en XP
versions. |
| - |
The
application are in Bellcore *.sor format. |
| - |
The
operating instruction are in the English, Spanish and
Korean language. |
| - |

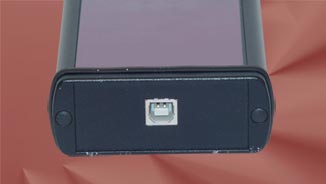

USB input. |
| - |
The
power supply of the USB from the laptop or PC is lesser
than 200 mA. |
| |
|
|
|
| |
| |
|
The
specifications of the OTDR's are: |
| |
|
| - |

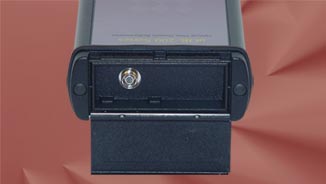

Connector: ST or FC. |
| - |
Wavelength:
850/1300 and 1310/1550 or both and 1310 and 1550 nm. |
| - |
Dynamic Range: 26/25, 28/29, 30, 32/31, 40/38 or 43/42 dB. |
| - |
Attenuation Dead Zone: 6 or 12 meter. |
| - |
Pulsewidth:
10 to 1.000 or 10 to 20.000 ns. |
| - |
Distance Range: 5, 10, 20, 40, 80, 120, 160 and 240 km. |
| - |
Loss Resolution: 0,001 dB. |
| - |
Refractive Index Range: 1,0000 to 2,0000. |
| - |
Unit
Measurement: meter, feet, km + KF. |
|
|
 |
|
| |
| |
 |
|
|

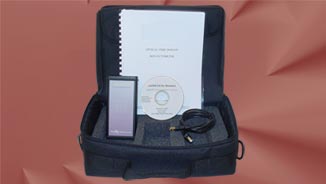

The package
contents of the OTDR's are: |
| |
|
| - |
OTDR. |
| - |
Software. |
| - |
USB cable. |
| - |
Certification report. |
| - |
Small rugged case. |
| - |
Product Manual. |
| |
|
|
|
| |
| |
|
|
| |
| The OTDR's are now available from 3.517,19 USD! |
| |
| |
|
Interested to see the whole product line of AFS-Europe?
Click here to
see all the great solutions of AFS-Europe. |
|
|
|
AFS-Europe has a broad range of high quality
test equipment suitable for the optical fiber market. The product line
has new
solutions to test, measure and certify cables which makes testing much
easier.
AFS appreciate the opinions of customers
at [email protected]. AFS-Europe
uses this information to improve its products and to develop new solutions
in the future. |
|
|
|
Interested to distribute the products of AFS?
Please contact us at
[email protected] |
|
|
|
