OLK51AP POF Test Set OM110A/OS417MD



This test set is the complete solution necessary for the installer to test, terminate, trouble shoot and document fiber optic systems. The test set is designed to allow testing of all parameters of fiber optic networks, including output power levels from the fiber, coupled source power and attenuation loss in a fiber. The test set includes the following products:

OM110A
The meter is designed for POF (plastic optical fiber) and short wavelength applications (visible and near infrared). The meter optimizes a Silicon detector suitable for large core fibers. It is the ideal tool for working with shorter wavelengths whether the system is glass, plastic or multimode fibers.The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

OS417MD
The sender is optimized for POF (Plastic Optical Fiber) and larger core multimode applications. The sender has a 650 nm universal connector and a 850 nm ST, SC, FC connector. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combined with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. This unit is easy to operate with only a wavelength/power switch, which selects optical wavelengths or disables the unit. The sender is delivered in a protective rubber boot.


Features

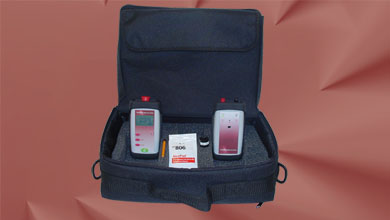

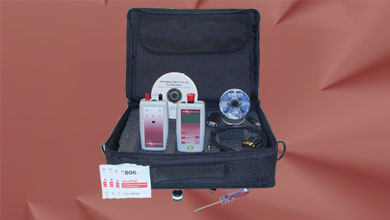

OLK51AP Package Contents:
1OM110A
1OS417MD
2AD100 (Universal 2.5mm)
2Product Manual
1CALM Calibration Meter
1CALS Calibration Sender
1Trim Tool
4Alco Wipe

OLK51AP Options:
  - See options list

Specifications

OM110A (POF APPLICATIONS)SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
ApplicationsPOF and Multimode
Calibrated (λ)Wavelength650nm, 665nm, 790nm and 850nm
Dynamic Range+3,0 dBm to -55,0 dBm
Detector Type3 mm Silicon (Si) in modulair housing
Connectors ST, SC, FC
Adapter Options See options list
Accuracy (@25°C, -20.0dBm)±0.25 dB
Measurement unitsdBm(absolute), -dB (relative)
Resolution0.1 dB
Controls5 Soft Buttons
ButtonsOn/Off, Backlight, λ, dB-dBm, Zero Reference
Power2 AA Batteries or AC Power Converter
Low Battery IndicatorYes
DisplayGraphical LCD with Backlight
Auto-ShutdownYes
Protective rubber bootYes
Testing reference guideYes
Enclosure SizeL: 125 mm W: 70 mm H: 30mm
Weight230 gram
Operation Temperature-10°C to +50°C (45% Hum, non condensing)
Storage Temperature-20°C to +60°C (75% Hum, non condensing)

OS417MD (POF APPLICATIONS)SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
ApplicationsPlastic, large core and multimode
Wavelength (λ)650nm and 850nm
Output typeLED
Modulated Frequencies

CW (Continuous Wave)

Stability, 1 hourLess than 0.5 dB
Power Output>-17dBm at 850nm, individually adjustable with mechanical screw
ConnectorsUniversal for 665 nm and ST for 850 nm
Controls

Front panel slide switches

Power2 AA Batteries or AC Power Converter
Low battery indicator

Yes

Protective rubber bootYes
Enclosure SizeL: 125 mm, W: 70 mm, H: 30 mm
Weight180 gram
Operation Temperature-10°C to +50°C (45% Hum, non condensing)
Storage Temperature-20°C to +60°C (75% Hum, non condensing)
QualifiedCE, RoHS and WEEE
