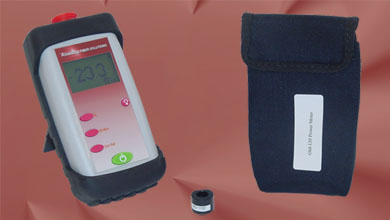

Demo Pictures
OM110A POF Meter ST/SC/FC



The meter is designed for POF (plastic optical fiber) and short wavelength applications (visible and near infrared). The meter optimizes a Silicon detector suitable for large core fibers. It is the ideal tool for working with shorter wavelengths whether the system is glass, plastic or multimode fibers.The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.


Features

OM110A Features:
l For POF and multimode
l 650nm, 665nm, 790nm & 850nm
l Measures optical power, loss (attenuation) and optical return loss
l Absolute (dBm) & Relative (dB) Reading
l Graphical display with testing guide
l Zero reference function
l On screen testing procedure guides
l Meter calibration certificate included
l Back light
l Auto power off
l Protective rubber boot
l Compact light weight carrying case

OM110A Package Contents:
1 OM110A POF Meter ST/SC/FC
1 Product Spec Sheet
1 PCHOM100 Carrying Pouch
1 Calibration Certificate
1 AD100 (universal 2.5mm adapter)

OM110A Options:
   - See options list

Specifications

OM110A (POF APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications POF and Multimode
Calibrated (λ)Wavelength 650nm, 665nm, 790nm and 850nm
Dynamic Range +3,0 dBm to -55,0 dBm
Detector Type 3 mm Silicon (Si) in modulair housing
Connectors  ST, SC, FC
Adapter Options  See options list
Accuracy (@25°C, -20.0dBm) ±0.25 dB
Measurement units dBm(absolute), -dB (relative)
Resolution 0.1 dB
Controls 5 Soft Buttons
Buttons On/Off, Backlight, λ, dB-dBm, Zero Reference
Power 2 AA Batteries or AC Power Converter
Low Battery Indicator Yes
Display Graphical LCD with Backlight
Auto-Shutdown Yes
Protective rubber boot Yes
Testing reference guide Yes
Enclosure Size L: 125 mm W: 70 mm H: 30mm
Weight 230 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature -20°C to +60°C (75% Hum, non condensing)
Qualified CE, RoHS and WEEE
