OLK61AV Cert. Set OM220A/OS420VSCEL


This certification test set is the complete solution necessary for the installer to certify, test, terminate, trouble shoot and document fiber optic systems. The test set is designed to allow testing of all parameters of fiber optic networks, including output power levels from the fiber, coupled source power and attenuation loss in a fiber. The test set includes the following products:

OM220A
The meter is a general-purpose power meter suitable for a both premise and outside plant applications. The meter is suitable for both single-mode and multimode applications, depending on the source which is used.The meter has an user selectable choice of 0,1 or 0,01 dB resolution, on board memory for 500 readings with date and time stamp, a serial port and an USB port for communication with a PC. In the internal memory of the meter 500 readings and results can be stored. The included PC software easily download and document the measurement results stored in the memory. The results can be printed directly in detail or as list from the software or can be saved in a spreadsheet file. The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.

OS420VSCEL
The sender is for Gigabit Ethernet and multimode fiber or for single-mode fibers up to 5 km at 1300 nm. The connector output can be adapted to any cable plant with hybrid adapters or hybrid cables. This unit is easy to operate with only a wavelength/power switch, which selects optical wavelengths or disables the unit. The light source is designed for performing insertion loss measurements on fiber optic links when used with an optical power meter. Whether testing outside plant or premise an optical source is the perfect tool when combinated with an optical power meter. The output is stabilized to ensure accurate test results per current TIA/EIA requirements. The wavelengths are individually adjustable with a mechanical screw to have a variable attenuator or to reduce the output power. This make it able to save battery power when high optical output power is not necessary, or to turn up the power to test long runs. The sender is delivered in a protective rubber boot.


Features

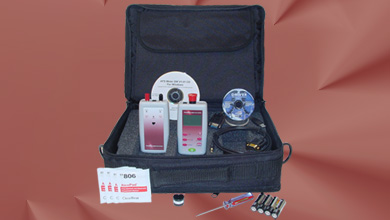

OLK61AV Package Contents:
1 OM220A
1 OS420VSCEL
1 AD100 (Universal 2.5mm)
1 SmartWare V3.00
1 CBL100 (OM-2xx to Serial Cable)
1 CBL200 (Serial to USB Cable)
2 Product Manual
1 CALM Calibration Meter
1 CALS Calibration Sender
1 Trim Tool
4 Alco Wipe

OLK61AV Options:
   - See options list

Specifications

OM220A (GP APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Multimode, Single-mode, Outside Plant and Premise
Calibrated (λ)Wavelength 850nm, 1300nm, 1310nm, 1490nm & 1550nm
Dynamic Range +3 dBm to -55 dBm
Detector Type 2mm Germanium in Modular Housing

Connectors

ST, SC, FC

Adaptor Options

See options list
Accuracy (@25°C, -20.0 dBm) ±0.25 dB
Measurement Units dBm/mW (absolute) - dB (relative)
Resolution 0.1 dB or 0.01 User Selectable
Storage 500 Readings with Time and Date Stamp
Serial Interface Yes
USB Interface Yes
PC Software Documentation Software

Controls

7 Soft Buttons

Buttons



On/Off, Backlight, λ/↑, dB-dBm/↓, Zero Reference/Select, Save/Delete,         Test/Results

Power

2x AA Batteries or AC Power Converter

Low Battery Indicator

Yes

Display

Graphical LCD with Backlight

Auto-Shutdown

Yes
Protective rubber boot Yes
Testing reference guide Yes

Enclosure Size

L: 125 mm W: 70 mm H: 30mm

Weight

230 Grams

Operation Temperature

-10°C to +50°C (45% Hum, non condensing)

Storage Temperature

 -20°C to +60°C (75% Hum, non condensing)
OS420VSCEL (Multimode APPLICATIONS) SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Applications Gigabit Ethernet and multimode fiber
Wavelength (λ) 850 nm and 1300 nm
Output type Laser/LED
Modulated Frequencies CW (Continuous Wave)
Stability, 1 hour Less than 0.1 dB
Power Output >-5 dBm @850 nm, individually adjustable with mechanical screw
>-17 dBm @1300 nm, individually adjustable with mechanical screw
Connector ST/SC/FC for 850 nm and ST for 1300 nm
Controls Front panel slide switches
Power 2 AA Batteries or AC Power Converter
Low battery indicator Yes
Protective rubber boot Yes
Enclosure Size L: 125 mm, W:70 mm, H:30mm
Weight 180 gram
Operation Temperature -10°C to +50°C (45% Hum, non condensing)
Storage Temperature

-20°C to +60°C (75% Hum, non condensing)

OM200A Reporter software specifications SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Number of measurements 500 measurements
User information Company name
Phone number
Name
Job ID
Fiber parameters User fiber ID
Fiber type
Fiber details
Connector type
Meter readings Model meter
Calibration date
Reading ID
Result
NanoWatt
dB/dBm
Wavelength
Time and date
Meter fiber parameters Fiber length (km)
Number of connectors
Number of splices
Fiber analyse results Wavelength
Actual reading
Allowable loss
Overhead margin
Pass/fail
Qualified CE, RoHS and WEEE
