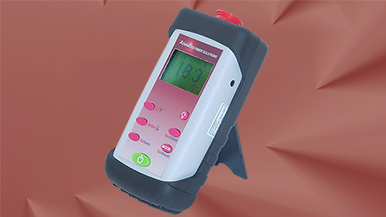

OM230A Certification Meter ST/SC/FC




The meter is designed for high power optical systems and CATV applications. The meter optimizes a high power Germanium detector. The meter has an user selectable choice of 0,1 or 0,01 dB resolution, on board memory for 500 readings with date and time stamp, a serial port and an USB port for communication with a PC. In the internal memory of the meter 500 readings and results can be stored. The included PC software easily download and document the measurement results stored in the memory. The results can be printed directly in detail or as list from the software or can be saved in a spreadsheet file. The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.


Features

OM230A Features:
l

Perfect certification tool

l

For single-mode

l

Measures optical power, loss (attenuation) and optical return loss

l

dBm (absolute) and dB (relative) measurement

l

Zero reference with dBm value displayed

l

Storage of 500 results

l

PC software included

l

Serial port and USB port

l

Meter calibration certificate included

l

Graphical display with testing guide

l

Display back light

l

Auto power off

l

Compact light weight carrying case


OM230A Package Contents:
1OM230A Certification Meter ST/SC/FC
1OM200 Series Manual
1Carrying Pouch
1CALM Calibration Meter
1AD100 (universal 2.5mm adapter)
1SmartWare V3.00
1CBL100 (OM-2xx to Serial Cable)
1CBL200 (Serial to USB Cable)

OM230A Options:
 - See options list

Specifications

OM230A (POF APPLICATIONS)SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
ApplicationsSingle-mode, Long wavelengths, CATV
Calibrated (λ)Wavelength1310nm and 1550nm
Dynamic Range+20 dBm to -30 dBm
Detector TypeHigh Powered Germanium in Modular Housing
ConnectorsST, SC, FC
Adaptor OptionsSee options list
Accuracy (@25°C, -20.0 dBm)±0.25 dB
Measurement UnitsdBm (absolute) - dB (relative)
Resolution0.1 dB or 0.01 User Selectable
Storage500 Readings with Time and Date Stamp
Serial InterfaceYes
USB InterfaceYes
PC SoftwareDocumentation Software
Controls7 Soft Buttons
ButtonsOn/Off, Backlight, λ/↑, dB-dBm/↓, Zero Reference/Select, Save/Delete, Test/Results
Power2 AA Batteries or AC Power Converter
Low Battery IndicatorYes
DisplayGraphical LCD with Backlight
Auto-ShutdownYes
Protective rubber bootYes
Testing reference guideYes
Enclosure SizeCompact Handheld (L-4.94"/W-2.75"/H-1.2")
Weight230 gram
Operation Temperature-10°C to +50°C (45% Hum, non condensing)
Storage Temperature-20°C to +60°C (75% Hum, non condensing)

OM200A Reporter software specificationsSPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Number of measurements500 measurements
User informationCompany name
Phone number
Name
Job ID
Fiber parametersUser fiber ID
Fiber type
Fiber details
Connector type
Meter readingsModel meter
Calibration date
Reading ID
Result
NanoWatt
dB/dBm
Wavelength
Time and date
Meter fiber parametersFiber length (km)
Number of connectors
Number of splices
Fiber analyse resultsWavelength
Actual reading
Allowable loss
Overhead margin
Pass/fail

Qualified

CE, RoHS and WEEE
