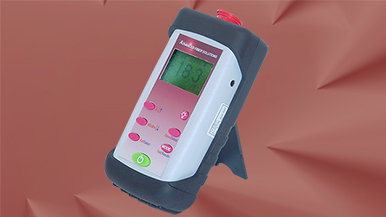

OM220 Certification Meter ST/SC/FC




The meter is a general-purpose power meter suitable for a both premise and outside plant applications. The meter is suitable for both single-mode and multimode applications, depending on the source which is used.The meter has an user selectable choice of 0.1 or 0.01 dB resolution, on board memory for 500 readings with date and time stamp, a serial port and an USB port for communication with a PC. In the internal memory of the meter 500 readings and results can be stored. The included PC software easily download and document the measurement results stored in the memory. The results can be printed directly in detail or as list from the software or can be saved in a spreadsheet file. The meter measures optical power, loss (attenuation) and optical return loss. The meter is calibrated at industry standard wavelengths (NIST traceable). The zero reference function is ideal for testing fiber optic cables in dB, the reference value is saved in the power meter. A universal 2,5 mm universal adapter with a threaded housing is included, other adapters are also available as an accessory. Due to the backlight the data is always visible. The meter is delivered in a protective rubber boot.


Features

OM220 Features:
lPerfect certification tool
lFor multimode and single-mode
lMeasures optical power, loss (attenuation) and optical return loss
ldBm (absolute) and dB (relative) measurement
lZero reference with dBm value displayed
lStorage of 500 results
lPC software included
lSerial port and USB port
lMeter calibration certificate included
lGraphical display with testing guide
lDisplay back light
lAuto power off
lCompact light weight carrying case

OM220 Package Contents:
1OM220 Certification Meter ST/SC/FC
1Product Manual
1Carrying Pouch
1CALM Calibration Meter
1AD100 (universal 2.5mm adapter)
1SmartWare V3.00
1CBL100 (OM-2xx to Serial Cable)
1CBL200 (Serial to USB Cable)

OM220 Options:
l- See options list

Specifications

OM220 (GF APPLICATIONS)SPECIFICATIONS, KEY FEATURES AND APPLICATIONS
ApplicationsMultimode, Single-mode, Outside Plant and Premise
Calibrated (λ)Wavelength850nm, 1300nm, 1310nm & 1550nm
Dynamic Range+3 dBm to -55 dBm
Detector Type1mm Germanium in Modular Housing

Connectors

ST, SC, FC

Adaptor Options

See options list
Accuracy (@25°C, -20.0 dBm)±0.25 dB
Measurement UnitsdBm (absolute) - dB (relative)
Resolution0.1 dB or 0.01 User Selectable
Storage500 Readings with Time and Date Stamp
Serial InterfaceYes
USB InterfaceYes
PC SoftwareDocumentation Software

Controls

7 Soft Buttons

Buttons



On/Off, Backlight, λ/↑, dB-dBm/↓, Zero Reference/Select, Save/Delete,         Test/Results

Power

2x AA Batteries or AC Power Converter
Low Battery Indicator                                 Yes

Display

Graphical LCD with Backlight

Auto-Shutdown

Yes
Protective rubber bootYes
Testing reference guideYes

Enclosure Size

L: 125 mm W: 70 mm H: 30mm

Weight

230 Grams

Operation Temperature

-10°C to +50°C (45% Hum, non condensing)

Storage Temperature

 -20°C to +60°C (75% Hum, non condensing)
OM200A Reporter software specificationsSPECIFICATIONS, KEY FEATURES AND APPLICATIONS
Number of measurements500 measurements
User informationCompany name
Phone number
Name
Job ID
Fiber parametersUser fiber ID
Fiber type
Fiber details
Connector type
Meter readingsModel meter
Calibration date
Reading ID
Result
NanoWatt
dB/dBm
Wavelength
Time and date
Meter fiber parametersFiber length (km)
Number of connectors
Number of splices
Fiber analyse resultsWavelength
Actual reading
Allowable loss
Overhead margin
Pass/fail

Qualified

CE, RoHS and WEEE
