Checking continuity or quickly tracing multimode fibers in networks to
insure proper connections is a difficult task in large fiber count systems.
AFS Europe makes it quite simple with a low-cost solution! Read more about it in this
newsletter! |
|

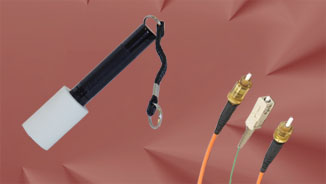

FCT-100 Continuity Tester |
|
To function properly, a fiber link must be “continuous”,
meaning that it is not broken internally, either in the connector ends or
within the fiber cable itself. The continuity tester is used to
perform this test. Visual testing yields a simple “no go” test. If the light
isn’t visible at the other end of the fiber link, then the fiber or
connector
is unusable in its present state and requires further testing and repair. |
Click on the picture for additional information! |
|
FCT-100 Key Features: |
- |

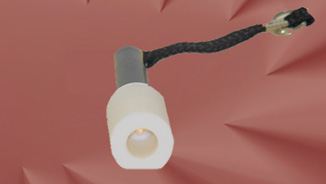

This bright visible
source
allows the user to check the continuity
of
multimode fibers or fiber bundles. |
- |
Quick tracing of fibers
on patchpanels. |
- |
It can
be used as a continuity checker to determine if jumper
cables or a fiber on a reel that already has connectors
is in good condition, or if installed fiber has been
damaged. |
- |
This continuity tester is perfect for testing and troubleshooting
every multimode fiber network. |
- |
This tool efficiently transmits light down fiber,
providing easy identification at fiber’s far end. |
|
|
|
High quality tester! |
|

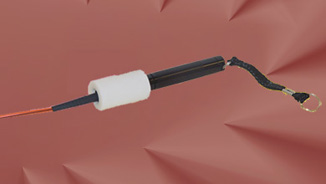

The FCT-100 is an economical and simple fiber continuity tester. By shining
the FCT-100 into one end of a fiber link, visible
light will be injected into the fiber. If the light is visible at the
opposite end, then you will know that the fiber link is continuous. |
Take a look at the specifications of this optical fiber
continuity tester: |
- |
Suitable for Multimode
Fibers. |
- |
This tool is compatible
with ST, SC and FC Connectors. |
- |
A range of 4 km. |
- |
Weight of 27 grams
(without battery). |
- |
Length only 10.5
centimeters. |
- |
Water resistance. |
- |
Easy-to-use. |
- |
Powered by one AAA
battery. |
|
|
|
|
|
Quick, easy and good value! |
|
Because the light is immediately visible, the user
has instant result. |
|
|
As written
above, this handy tool can be used for different
applications.
This device is compact and lightweight, so between testing
you can just put it back in your pocket or easily
store it in a toolbox.
If you take a look at the price/quality
ratio, you will discover that this tester is a excellent
acquisition! Because it is so inexpensive, every
installer in the crew can afford one. |
|
|
|
|
Interested to see the whole product line of
AFS? Click
here to see all the great solutions of AFS.
AFS has a broad range of high quality test equipment suitable for the optical fiber market. The product line
has new solutions to test, measure and certify cables which makes testing much easier.
