Newsletter January 2006 v.2


This week in the newsletter a highlight of a great solution of AFS to find out if installed fiber cables are suitable for a high speed network. Read all about this product in this newsletter!




In The Spotlight: Bandwidth Tester

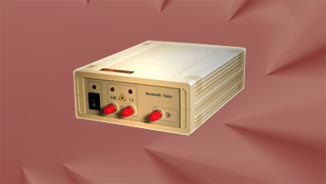

Advance Fiber Solutions has the solution to determine if installed fibers are viable for higher speed networks and saves the cost of installing new fibers in many applications. The Bandwidth Tester OBW-2 controlled by a Window based PC or Laptop test and measures cables within a few seconds. The PC or Laptop calculates the test data and provides a clear display of the data.



The new low-cost fiber optic bandwidth tester can verify the performance of multimode fibers for gigabit networks. The OBW-2 has the capability of testing legacy fibers and laser-rated fibers to determine their suitability for high speed networks such as Gigabit Ethernet, 10 Gigabit Ethernet and Fiber Channel. The OBW-2 is suitable for all current multimode fibers and can be used to test fibers at manufacture, during cabling, and to determine the effects of termination and splicing on bandwidth.

Click on the picture for more information.
Features:
-  Fiber type; 50/125 and 62,5/125
-  Wavelength; 850nm, 1300nm, or custom
-  Analyzing bandwidth; 2500MHz
-  Measures lengths up to 10km
-  Dynamic range; greater than 25dB

Also available:
-  Single- or dual- wavelength version of tester
-  Different types of light sources (VCSEL or FP)
Example of a measurement displayed on a PC or laptop.

Interested to see the whole product line of AFS? Click here to see all the great solutions of AFS.

AFS has a broad range of high quality test equipment suitable for the optical fiber market. The product line
has new solutions to test, measure and certify cables which makes testing much easier. AFS appreciate the opinions of customers at [email protected]. AFS uses this information to improve its products and to develop new solutions in the future.

 Interested to distribute the products of AFS? Please contact us at [email protected].
