Newsletter December 2005 v.1

This week in the newsletter a highlight of the great solution of AFS to test & measure optical fiber cables. Read all about this solution in the rubric In The Spotlight.



In The Spotlight: Optical Power Meters




All of the Advanced Fiber Solutions power meters are the perfect tools for measuring optical power, loss (attenuation) and optical return loss in any system, it is just a matter of picking the right instrument for the application. All meters are calibrated at industry standard wavelengths (NIST traceable) for both single mode and multimode transmitters. When paired with an OS400 series source the OM100 & OM200 series meters are ideal for single-mode (OS430 laser source) or multimode (OS420 LED source) applications.



OM100 Series

The OM100 series meters are a low cost series of power meters for the technician who wants a high performance meter.

The OM110 power meter is designed for POF (plastic optical fiber) and short    wavelength applications. The OM110 optimizes a Silicon detector suitable for large core fibers. It is the ideal tool for working with shorter wavelengths whether the system is glass, plastic or multimode fibers.

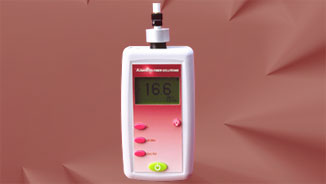

Example of an OM100 series Optic Power Meter.


The OM120 is a general-purpose power meter suitable for a both premise and outside plant applications. These units are ideal for measurement of optical power and optical loss/attenuations in a fiber optic network.

The OM130 power meter is designed for high power optical systems and CATV applications. AFS offers two high power meters with two different dynamic range windows. The OM130 optimizes a high power Germanium detector with a dynamic window of +20 dBm to –30 dBm.

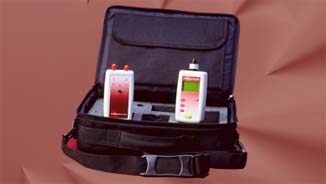

Click on the picture for more information of the Test Kit.

OM200 Series

The OM200 series Fiber Optic Power Meter has the same high performance as the OM100 series with the added advantage of a user selectable choice of 0.1 or 0.01 resolution, on board memory and a serial port connection for communication with a PC.
Click on OM210, OM220 and OM230 to see the specifications of these great products.

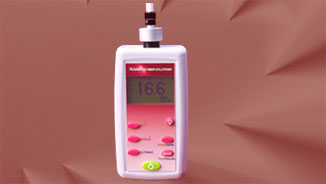

Example of an OM200 series Optic Power Meter.


New information on the secure site



High Resolution Pictures



To support the distributors with the promotion and advertisement of the AFS products is the secure site extended with high resolution pictures of the products. The high resolution picture list will be automatically updated when there are new high resolution pictures available. Click here to see the High Resolution Pictures list.



AFS appreciate the opinions of the distributors and the customers at [email protected]. AFS uses this information to improve its products and by the development of new products.

AFS supports technical questions at [email protected].
